Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | U6-0809 |
Minimum Order Quantity: | 1set |
Price: | Details |
Packaging Details: | Wooden packing |
Delivery Time: | 15 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets / month |
Name: | Industrial Robots Arm, Six-axis Robot | Repeatability: | ±0.02mm |
---|---|---|---|
Freedom Of Movement: | 6 | Maximum Load: | 8KG |
Radius Of Motion: | 904.4mm | Body Weight: | 50KG |
Motor Power Consumption: | 2800W | Protection Class: | IP54 |
Installation Mode: | Countertop Mounting | ||
High Light: | 50KG Industrial Robots Arm,904.4mm Industrial Robots Arm,assembly line arm six axis |

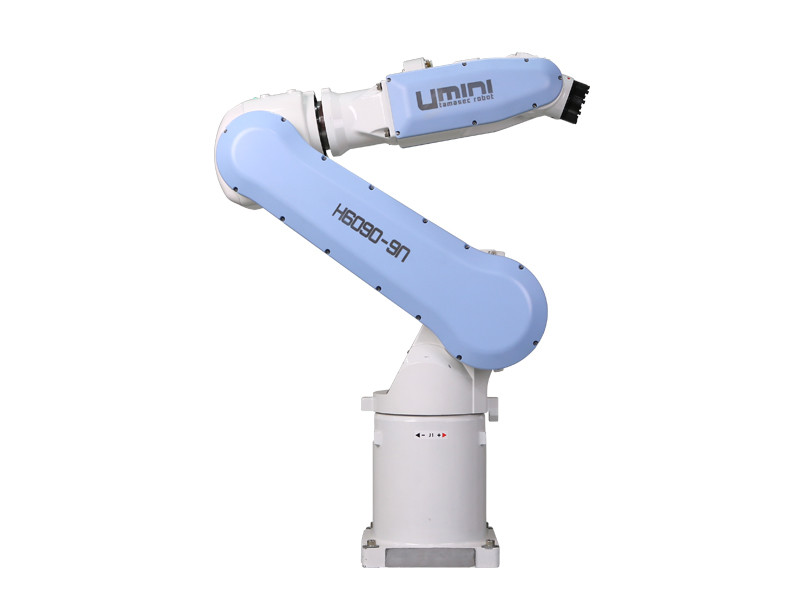

Industrial Robots Arm, Six-axis robot
Specification name | Parameter | |
Repeatability | ±0.02mm | |
Freedom of movement | 6 | |
Maximum load | 8KG | |
Radius of motion | 904.4mm | |
Speed of movement | J1 | 297.5°/s |
J2 | 138.5°/s | |
J3 | 166°/s | |
J4 | 367.5°mm/s | |
J5 | 187.5°/s | |
J6 | 600°/s | |
Range of motion | J1 | ±170.5° |
J2 | -115.5°∽+69° | |
J3 | -50°∽+203.5° | |
J4 | ±270° | |
J5 | -127°∽+135° | |
J6 | ±360° | |
Body weight | 50KG | |
Motor power consumption | 2800W | |
Protection class | IP54 | |
Installation mode | Countertop mounting |
