Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | U6-1014 |
Minimum Order Quantity: | 1set |
Price: | Details |
Packaging Details: | Wooden packing |
Delivery Time: | 15 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets / month |
Name: | Industrial Robots Arm, Six-axis Robot | Repeatability: | ±0.05mm |
---|---|---|---|
Freedom Of Movement: | 6 | Maximum Load: | 10KG |
Radius Of Motion: | 1400mm | Body Weight: | 150KG |
Motor Power Consumption: | 5300W | Protection Class: | IP54 |
Installation Mode: | Countertop Mounting | ||
High Light: | 1400mm palletizing robot arm,10KG palletizing robot arm,small 6 axis robot for forging |

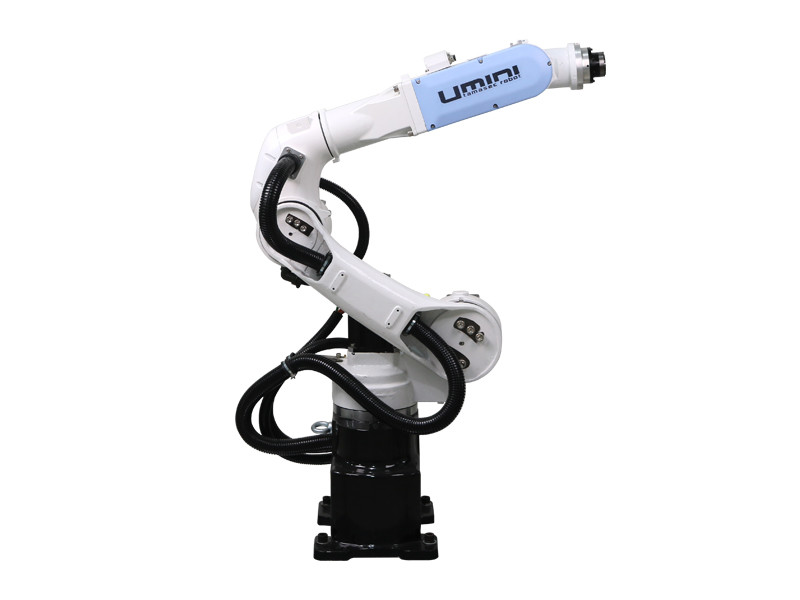

Industrial Robots Arm, Six-axis robot
Specification name | Parameter | |
Repeatability | ±0.05mm | |
Freedom of movement | 6 | |
Maximum load | 10KG | |
Radius of motion | 1400mm | |
Speed of movement | J1 | 173°/s |
J2 | 171°/s | |
J3 | 173°/s | |
J4 | 370°mm/s | |
J5 | 297°/s | |
J6 | 375°/s | |
Range of motion | J1 | ±165° |
J2 | -165°∽+71° | |
J3 | -83°∽+147° | |
J4 | ±157° | |
J5 | +105° | |
J6 | ±360° | |
Body weight | 150KG | |
Motor power consumption | 5300W | |
Protection class | IP54 | |
Installation mode | Countertop mounting |
