Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | U4-0405 |
Minimum Order Quantity: | 1set |
Price: | Details |
Packaging Details: | Wooden packing |
Delivery Time: | 15 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets / month |
Name: | Industrial Robots Arm, Four-axis Robot | Repeatability: | ±0.02mm |
---|---|---|---|
Freedom Of Movement: | 4 | Maximum Load: | 4KG |
Radius Of Motion: | 500mm | Body Weight: | 11.5KG |
Motor Power Consumption: | 800W | Protection Class: | IP54 |
Installation Mode: | Countertop Mounting | ||
High Light: | 500mm industrial manipulator arms,11.5KG industrial manipulator arms,Cnc Manipulator four axis robot |

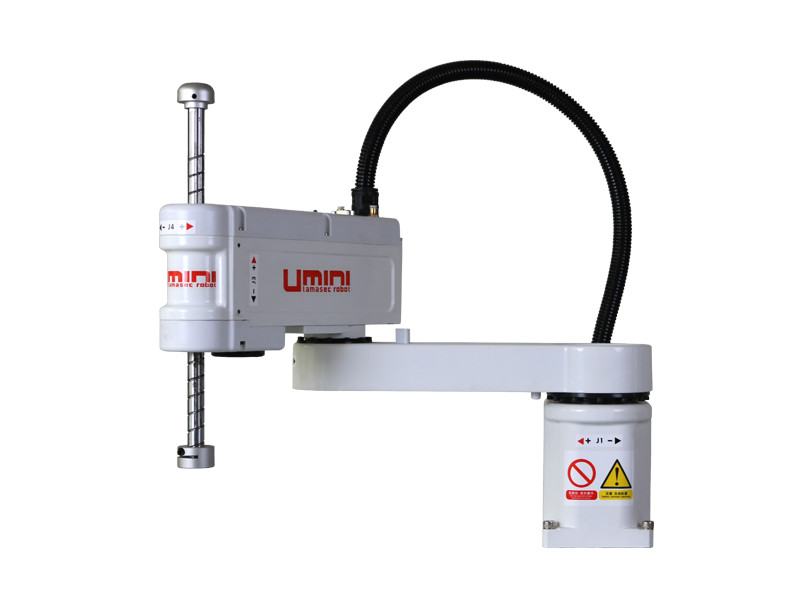

Industrial Robots Arm, Four-axis robot
Specification name | Parameter | |
Repeatability | ±0.02mm | |
Freedom of movement | 4 | |
Maximum load | 4KG | |
Radius of motion | 500mm | |
Speed of movement | J1 | 5573mm/s |
J2 | 5573mm/s | |
J3 | 556mm/s | |
J4 | 3125°mm/s | |
Range of motion | J1 | ±130° |
J2 | -140° | |
J3 | 160mm | |
J4 | ±360° | |
Body weight | 11.5KG | |
Motor power consumption | 800W | |
Protection class | IP54 | |
Installation mode | Countertop mounting |
