Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | U6-0306 |
Minimum Order Quantity: | 1set |
Price: | Details |
Packaging Details: | Wooden packing |
Delivery Time: | 15 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets / month |
Name: | Industrial Robots Arm, Six-axis Robot | Repeatability: | ±0.02mm |
---|---|---|---|
Freedom Of Movement: | 6 | Maximum Load: | 3KG |
Radius Of Motion: | 600mm | Body Weight: | 14.6KG |
Motor Power Consumption: | 1450W | Protection Class: | IP54 |
Installation Mode: | Countertop Mounting | ||
High Light: | 3KG Load industrial mechanical arm,1450W industrial mechanical arm,6 axis industrial robot manipulator control |

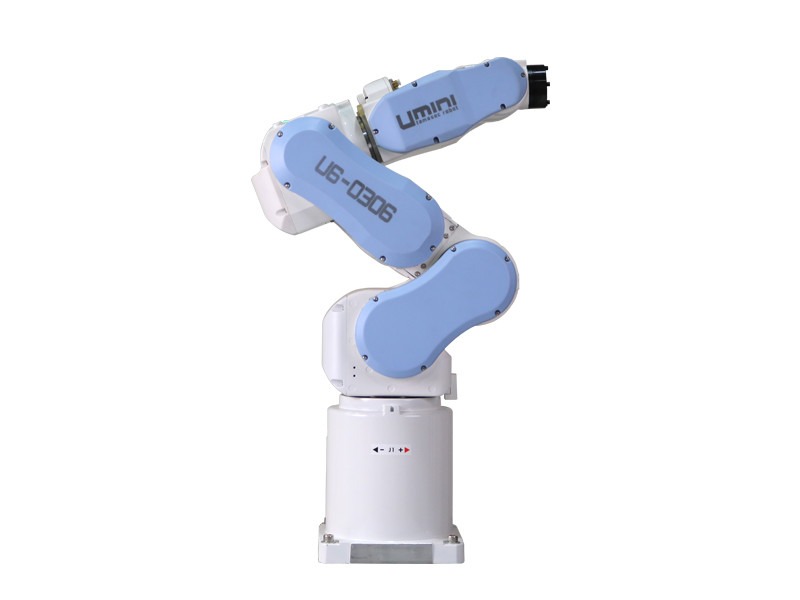

Industrial Robots Arm, Six-axis robot
Specification name | Parameter | |
Repeatability | ±0.02mm | |
Freedom of movement | 6 | |
Maximum load | 3KG | |
Radius of motion | 600mm | |
Speed of movement | J1 | 247.5°/s |
J2 | 231.8°/s | |
J3 | 297°/s | |
J4 | 300°mm/s | |
J5 | 600°/s | |
J6 | 600°/s | |
Range of motion | J1 | ±160° |
J2 | -110°∽+50° | |
J3 | -36°∽+140° | |
J4 | ±112° | |
J5 | ±112° | |
J6 | ±360° | |
Body weight | 14.6KG | |
Motor power consumption | 1450W | |
Protection class | IP54 | |
Installation mode | Countertop mounting |
