Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | U6-0303 |
Minimum Order Quantity: | 1set |
Price: | Details |
Packaging Details: | Wooden packing |
Delivery Time: | 15 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets / month |
Name: | Industrial Robots Arm,Six-axis Robot | Repeatability: | ±0.02mm |
---|---|---|---|
Freedom Of Movement: | 6 | Maximum Load: | 3KG |
Radius Of Motion: | 355mm | Body Weight: | 14.6KG |
Motor Power Consumption: | 900W | Protection Class: | IP54 |
Installation Mode: | Countertop Mounting | ||
High Light: | 3KG load Industrial Robots Arm,355mm Industrial Robots Arm,900W injection molding machine robot arm |

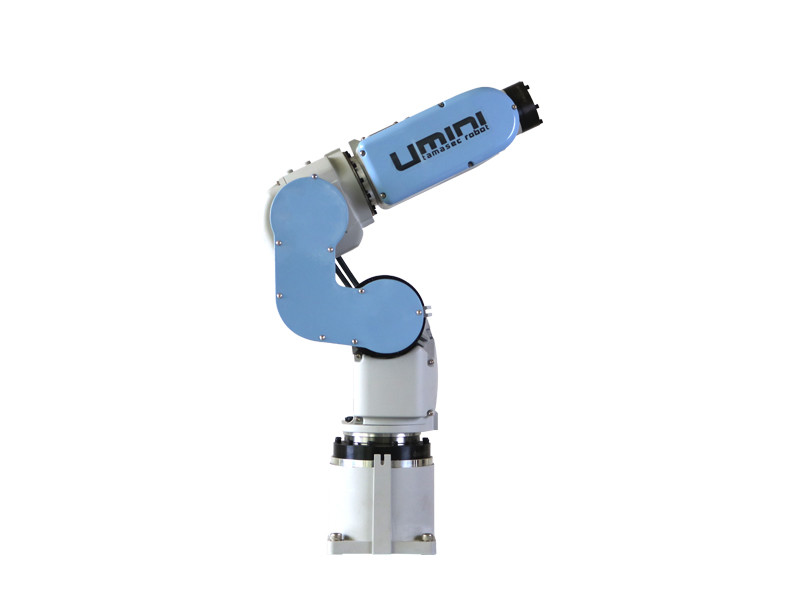

Industrial Robots Arm,Six-axis robot
Specification name | Parameter | |
Repeatability | ±0.02mm | |
Freedom of movement | 6 | |
Maximum load | 3KG | |
Radius of motion | 355mm | |
Speed of movement | J1 | 370°/s |
J2 | 246.9°/s | |
J3 | 247.5°/s | |
J4 | 294°mm/s | |
J5 | 600°/s | |
J6 | 600°/s | |
Range of motion | J1 | ±175° |
J2 | -121°∽+90° | |
J3 | -55°∽+164° | |
J4 | ±166.6° | |
J5 | -41°∽+135° | |
J6 | ±360° | |
Body weight | 14.6KG | |
Motor power consumption | 900W | |
Protection class | IP54 | |
Installation mode | Countertop mounting |
