Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | U6-0205 |
Minimum Order Quantity: | 1set |
Price: | Details |
Packaging Details: | Wooden packing |
Delivery Time: | 15 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets / month |
Name: | Industrial Robots Arm,Six-axis Robot | Repeatability: | ±0.02mm |
---|---|---|---|
Freedom Of Movement: | 6 | Maximum Load: | 2KG |
Radius Of Motion: | 502mm | Body Weight: | 12.8KG |
Motor Power Consumption: | 650W | Protection Class: | IP54 |
Installation Mode: | Countertop Mounting | ||
High Light: | 502mm robotic manipulator arm,650W robotic manipulator arm,12.8KG six axis industrial robot |

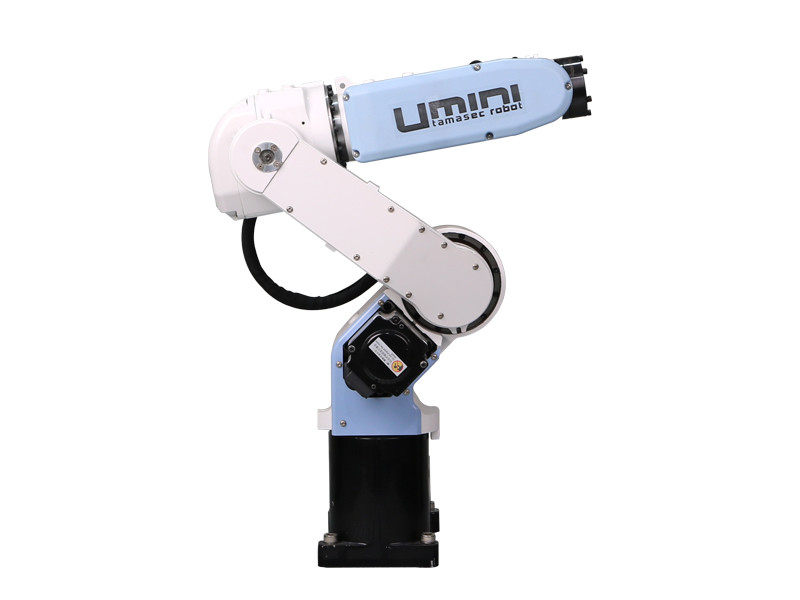

Industrial Robots Arm,Six-axis robot
Specification name | Parameter | |
Repeatability | ±0.02mm | |
Freedom of movement | 6 | |
Maximum load | 2KG | |
Radius of motion | 502mm | |
Speed of movement | J1 | 297°/s |
J2 | 198°/s | |
J3 | 240°/s | |
J4 | 148.5°mm/s | |
J5 | 600°/s | |
J6 | 600°/s | |
Range of motion | J1 | ±160° |
J2 | -160°∽+63° | |
J3 | -52.5°∽+146° | |
J4 | ±167.8° | |
J5 | +135° | |
J6 | ±360° | |
Body weight | 12.8KG | |
Motor power consumption | 650W | |
Protection class | IP54 | |
Installation mode | Countertop mounting |
