Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | U6-2017 |
Minimum Order Quantity: | 1set |
Price: | Details |
Packaging Details: | Wooden packing |
Delivery Time: | 15 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets / month |
Name: | Industrial Robots Arm, Six-axis Robot | Repeatability: | ±0.05mm |
---|---|---|---|
Freedom Of Movement: | 6 | Maximum Load: | 20KG |
Radius Of Motion: | 1700mm | Body Weight: | 235KG |
Motor Power Consumption: | 6350W | Protection Class: | IP54 |
Installation Mode: | Countertop Mounting | ||
High Light: | 20KG Industrial Robots Arm,235KG Industrial Robots Arm,6 axis welding robot 6350W |

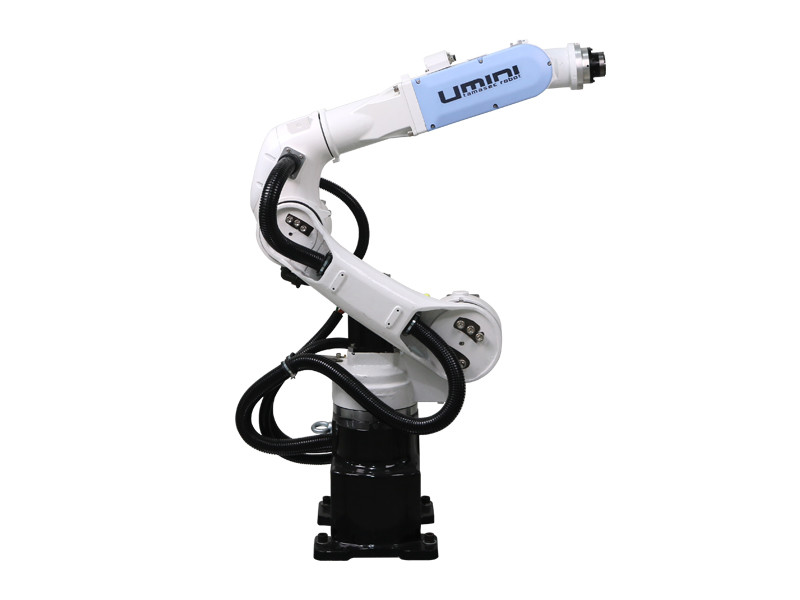

Industrial Robots Arm, Six-axis robot
Specification name | Parameter | |
Repeatability | ±0.05mm | |
Freedom of movement | 6 | |
Maximum load | 20KG | |
Radius of motion | 1700mm | |
Speed of movement | J1 | 163°/s |
J2 | 162°/s | |
J3 | 173°/s | |
J4 | 257.2°mm/s | |
J5 | 297°/s | |
J6 | 375°/s | |
Range of motion | J1 | ±166° |
J2 | -157°∽+75° | |
J3 | -85°∽+150° | |
J4 | ±162° | |
J5 | +105° | |
J6 | ±360° | |
Body weight | 235KG | |
Motor power consumption | 6350W | |
Protection class | IP54 | |
Installation mode | Countertop mounting |
