Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | SX2036 |
Minimum Order Quantity: | 1set |
Price: | $9000/set |
Packaging Details: | Wooden packing |
Delivery Time: | 10 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets / month |

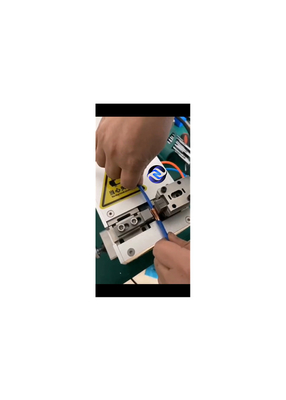

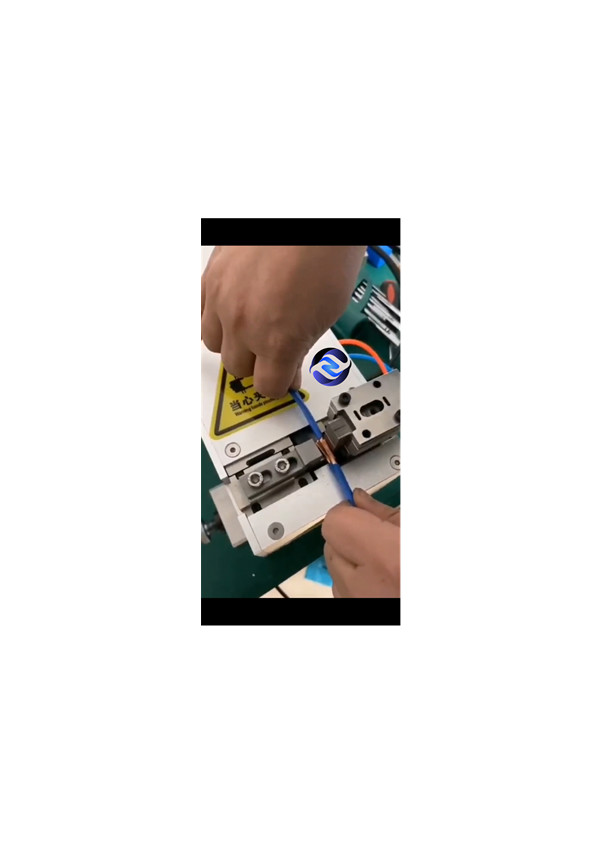

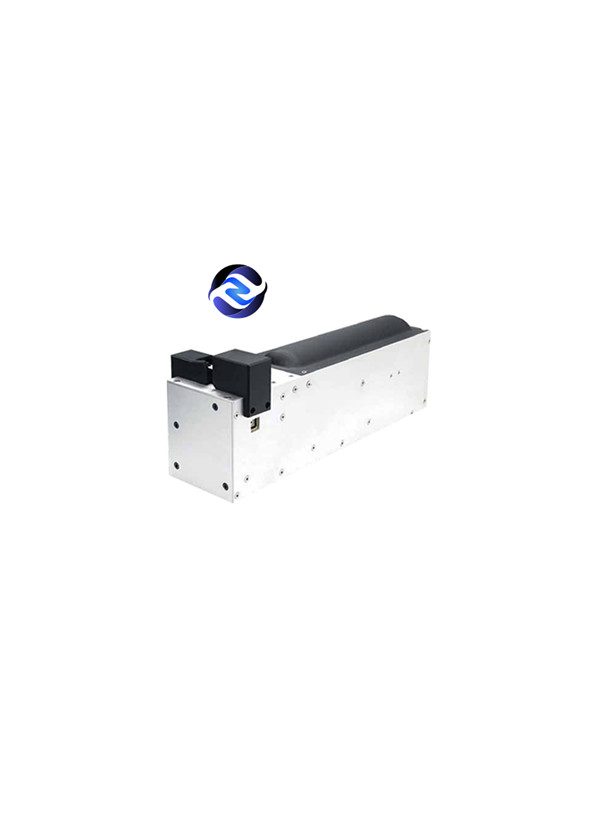

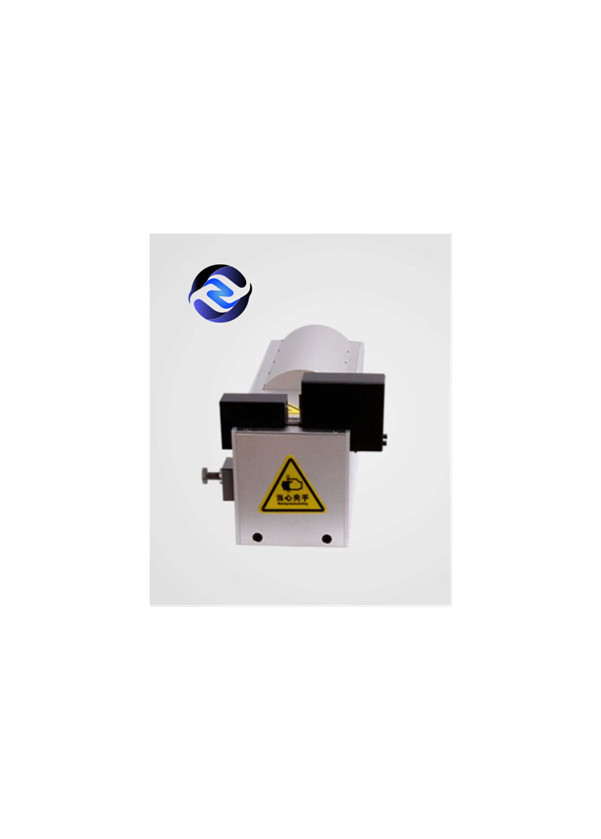

Name: | Ultrasonic Wire Harness Welding Machine | Power Input: | AC220V±10%/50Hz |
---|---|---|---|
Power: | 3600W | Frequency: | 20KHZ |
Pressure Range: | 0.05-0.6Mpa | Welding Area: | 25mm ² Within |
High Light: | 3600W small iron welding machine,20k small iron welding machine,machine wiring harness 25MM2 |
◆ PLL all-digital ultrasonic system;
◆ Harness width and height can be accurately controlled and adjusted;
◆ Can accurately locate the upper and lower positions of the welded structure;
◆ When the voltage fluctuates, the ultrasonic generator can automatically compensate the output voltage value to ensure the stable output of the amplitude of the solder head segment;
◆ Time, energy, continuous, segmented and other work modes;
◆ The interface has the current mode, current number, current frequency, current amplitude, current power, current energy;
Basic parameters:
◆Operating frequency: 20KHZ;
◆Nose weight :20KG;
◆Working air pressure: 0.5kgf/cm²-6.0 kgf/cm²;
◆Working voltage: AC220v/50HZ;

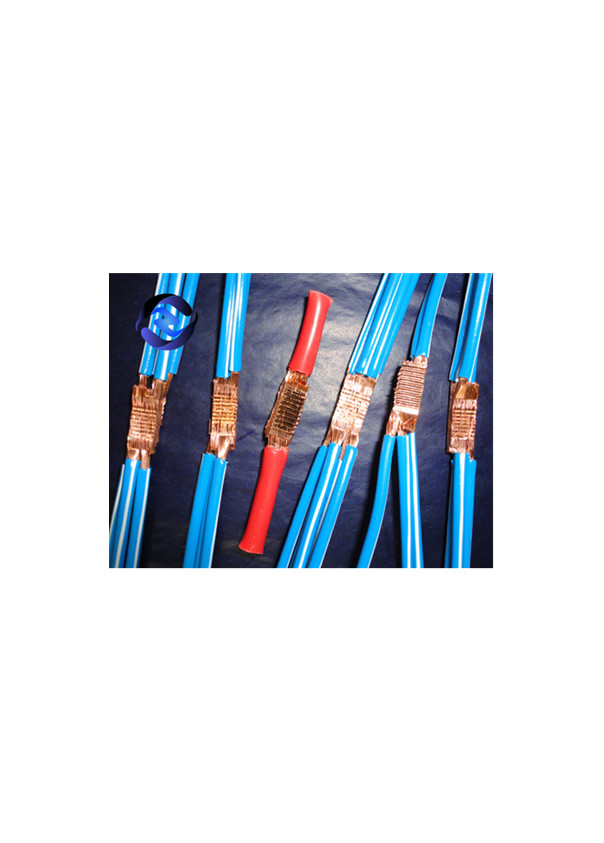

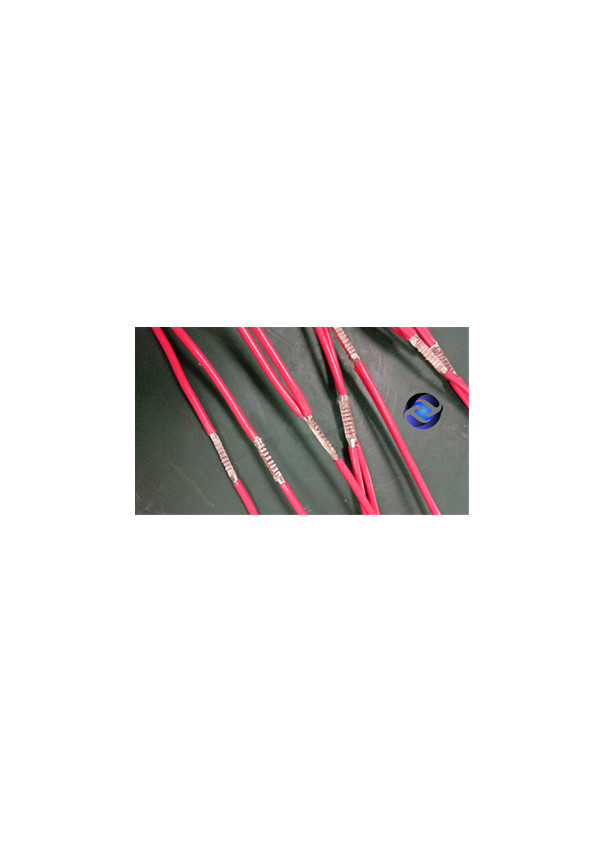

◆The 3600W is suitable for a maximum cross-sectional area of 25mm².
