Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | CS-2515 |
Minimum Order Quantity: | 1set |
Price: | $1300/set |
Packaging Details: | Wooden packing |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T |
Supply Ability: | 300 sets / month |
Name: | Ultrasonic Metal Welding Machine | Power Input: | AC220V±10%/50Hz |
---|---|---|---|
Power: | 1500W | Frequency: | 25KHZ |
Pressure Range: | 0.05-0.6Mpa | Working Mode: | Time(0.001S-9.999S) |
Welding Size: | According To Customer Needs | ||
High Light: | Ultrasonic Metal Welding Machine 25KH,Ultrasonic Metal Welding Machine 1500W,0.6Mpa aluminum spot welding machine |

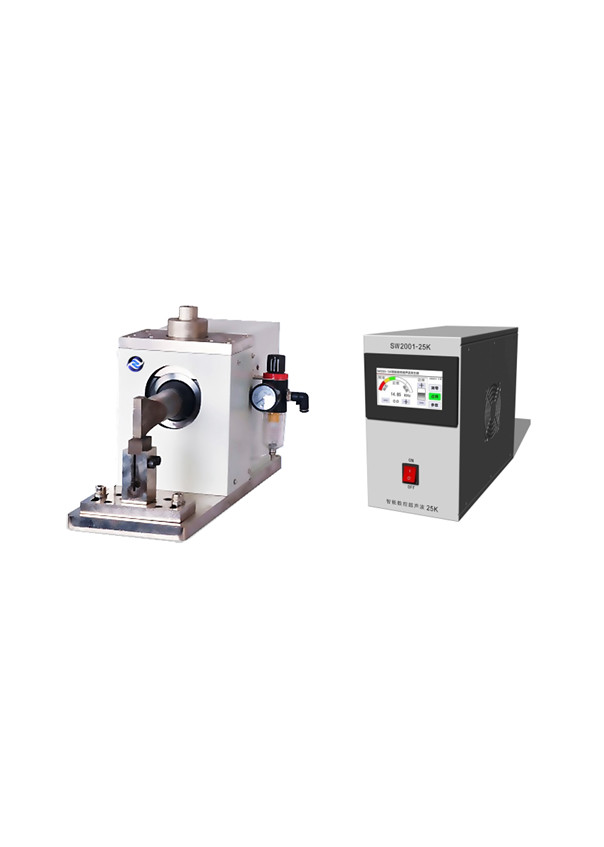

25KHZ 1500W Ultrasonic metal welding machine
Ultrasonic metal spot welding machine adopts microcomputer control, stable welding performance, excellent consistency. It is used by more well-known battery manufacturers to weld the pole ear end welding of new energy power batteries. It can also be used in PACK welding, soft connection sheet, solar panels, wire terminals, IGBT power modules, transformers, capacitors, connectors, heat sinks, copper tube sealing, battery coils and other welding fields.
Features:
◆ PLL all-digital ultrasonic system;
◆ The rise and fall speed of the welding head can be accurately controlled and adjusted;
◆ Can accurately locate the upper and lower positions of the welded structure;
◆ When the voltage fluctuates, the ultrasonic generator can automatically compensate the output voltage value to ensure the stable output of the amplitude of the solder head segment;
◆ Time, energy, continuous, segmented and other work modes;
◆ The interface has the current mode, current number, current frequency, current amplitude, current power, current energy;
Parameters:
Model | Power input | Out power | Frequency | Pressure range | Welding process | Unit price |
CS-2515 | AC220V±10%/50Hz | 1500W | 25KHz | 0.05-0.6Mpa | ①18650 battery single layer 0.016mm aluminum foil + 0.1 aluminum strip welding, welding size 3 * 4 * 25, 3 * 3, 4 * 4; ②18650 battery single layer 0.009mm copper foil + 0.1 nickel strip welding, welding size 3 * 4 * 25, 3 * 3, 4 * 4 |
$1300 |
