Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | ZY-60 |
Minimum Order Quantity: | 1set |
Price: | Details |
Packaging Details: | Wooden packing |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets / month |

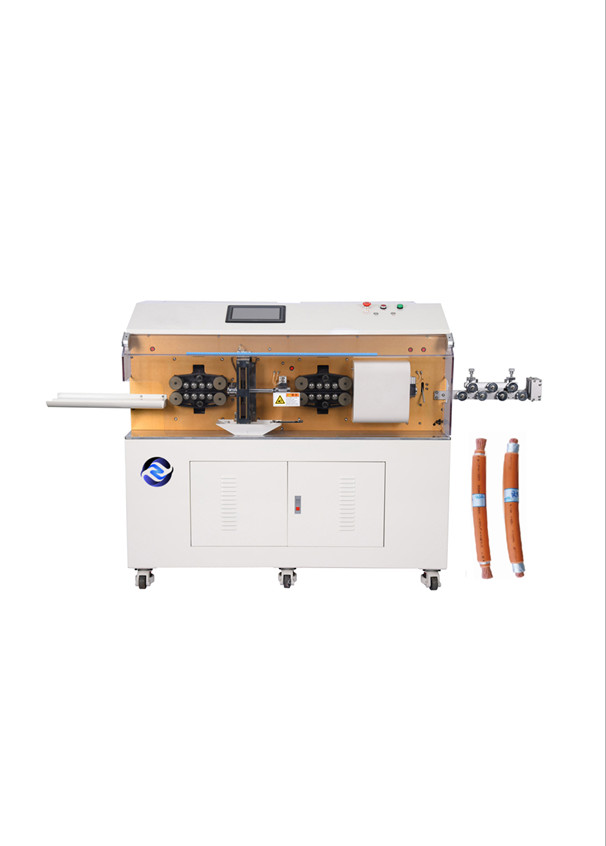

Name: | 10-120mm² Terminal Crimping Machine,automatic Multi-layer Rotary Cutting And Stripping Machine | Power Supply: | AC220/50HZ/2000W |
---|---|---|---|
Function: | New Energy Lines, Cable Lines, Coaxial Lines, Power Lines, Etc | Front And Back Peel Length: | Front End 1-200mm; Rear 1-130mm |
Machinable Range: | 10-120mm², Automatic Adjustment Of The Core, Different Specifications Without Tool Change | Cut Off Length: | 10-1000000mm |
Cutting Accuracy: | 1mm+Cut Off Length*0.2% | The Number Of Peelable Layers: | 1-8 Layer |
Pressure: | 2000KG | Dimensions: | 1500*1300*700mm |
Weight: | 500KG | ||
High Light: | 10mm2 Terminal Crimping Machine,120mm2 Terminal Crimping Machine,2KW rotary cutting and stripping machine |
Model | ZY-60 |
power supply | AC220/50HZ/2000W |
function |
New energy lines, cable lines, coaxial lines, power lines, etc
|
Front and back peel length
|
Front end 1-200mm; Rear 1-130mm
|
Machinable range |
10-120mm², automatic adjustment of the core, different specifications without tool change
|
Cut off length | 10-1000000mm |
Cutting accuracy | 1mm+Cut off length*0.2% |
The number of peelable layers
|
1-8 layer |
pressure | 2000KG |
Dimensions | 1500*1300*700mm |
weight | 500KG |
