Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | ZY10D |
Minimum Order Quantity: | 1set |
Price: | Details |
Packaging Details: | Wooden packing |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets / month |

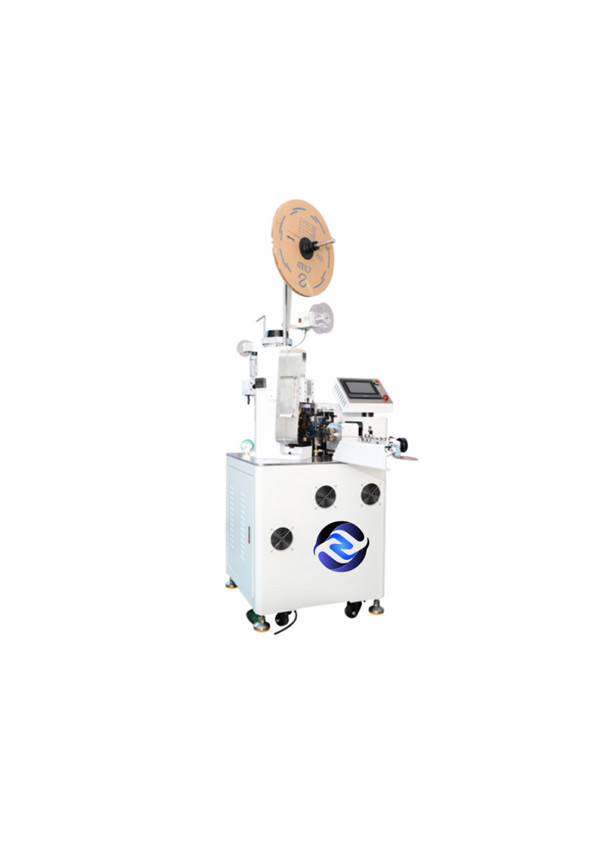

Name: | Terminal Crimping Machine, Cold-pressed Terminal Automaton | Power Supply: | AC220/50HZ |
---|---|---|---|
Function: | Cut Off + Crimp + Threading Sleeve + Drying Sleeve | Capacity: | 1600branch/H(The Length Of The Line Of Sight Varies) |
Machinable Range: | 0.25-2mm² | Cut Off Length: | 40-9999mm |
Cutting Accuracy: | 1mm+Cut Off Length*0.2% | Peel Length: | 0.1-11mm |
Pressure: | 2000KG | Atmospheric Pressure: | 6-6.5KG |
Dimensions: | 700*1260*1600mm | Weight: | 275KG |
High Light: | 0.25MM2 terminal crimping applicator,terminal 2mm2 crimping applicator Cold pressed,wire strip and crimp machine 2000KG |
Model | ZY10D |
power supply | AC220/50HZ |
function |
Cut off + crimp + threading sleeve + drying sleeve
|
Capacity | 1600branch/H(The length of the line of sight varies) |
Machinable range | 0.25-2mm² |
Cut off length | 40-9999mm |
Cutting accuracy | 1mm+Cut off length*0.2% |
Peel length | 0.1-11mm |
pressure | 2000KG |
atmospheric pressure | 6-6.5KG |
Dimensions | 700*1260*1600mm |
weight | 275KG |
