Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | LDM28 |
Minimum Order Quantity: | 1set |
Price: | $18000/set |
Packaging Details: | Wooden packing |
Delivery Time: | 15 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets / month |

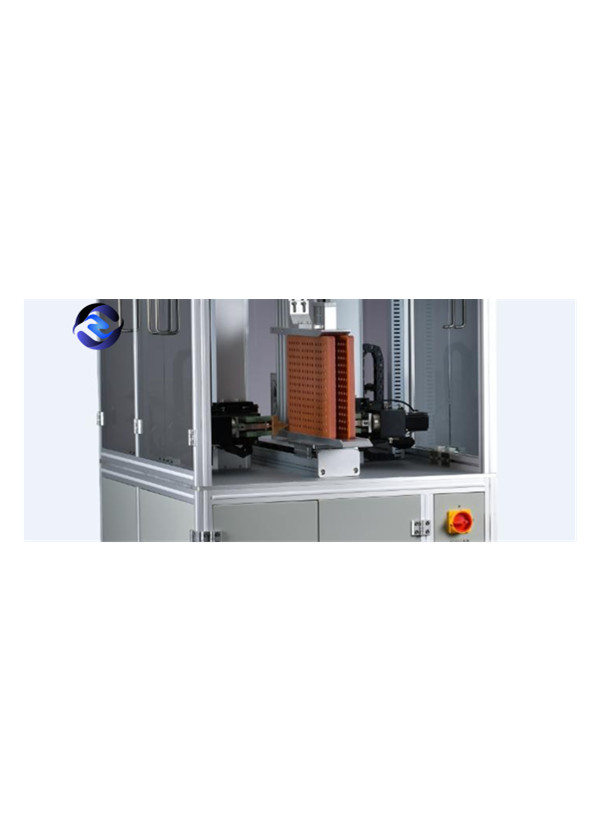

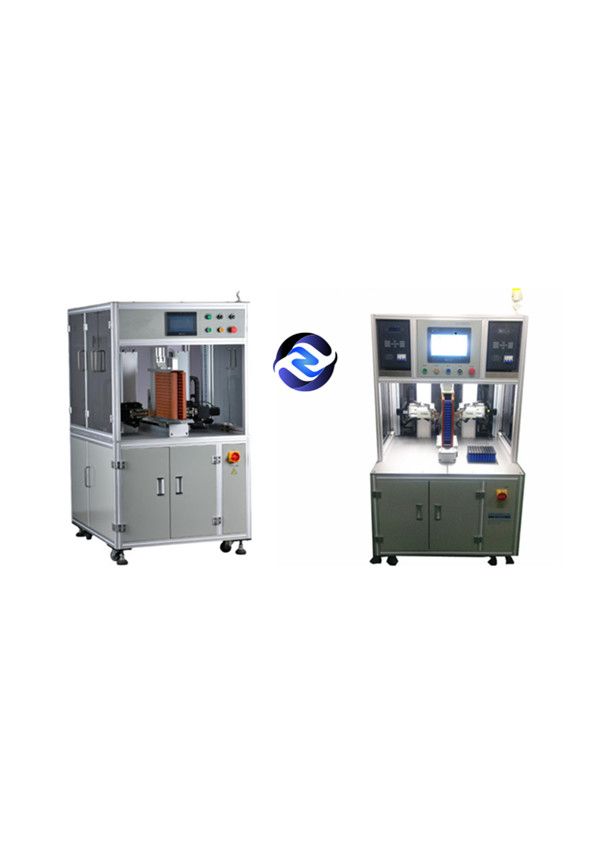

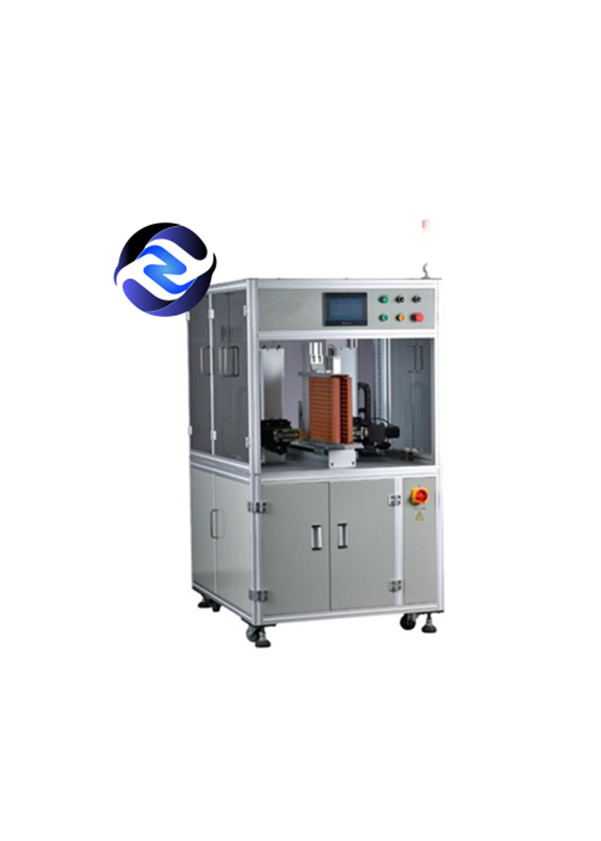

Name: | Battery Combined Welder(two-sided)、18650 Combined Welder(two-sided) | Power Input: | AC380V±10%/50Hz |
---|---|---|---|
X-axis Travel: | 0-500mm | Z1 Axis Travel: | 0-300mm |
Z2 Axis Travel: | 0-300mm | Welding Speed: | 0.5Seconds/dot; 3000-3600PCS/h |
Maximum Speed Of Motor Transmission: | 1500mm/s | Maximum Load Cell: | 300pcs(20*15) |
The Number Of Filegroups That Can Be Stored: | 99 Group | Dimensions(mm): | 980L*1260W*1700H |
Repeatability: | ±0.02mm | ||
High Light: | 3 axis Lithium Battery Machine,two sided Lithium Battery Machine,18650 combination welding machine |
X-axis travel | 0-500mm | Maximum speed of motor transmission | 1500mm/s |
Z1 axis travel | 0-300mm | Maximum load cell | 300pcs(20*15) |
Z2 axis travel | 0-300mm | The number of filegroups that can be stored | 99 group |
Welding speed | 0.5Seconds/dot; 3000-3600PCS/h | operating system | Motion controller HMI |
Transmission mode | Spindle servo motor + lead screw + linear guide | Dimensions(mm) | 980L*1260W*1700H |

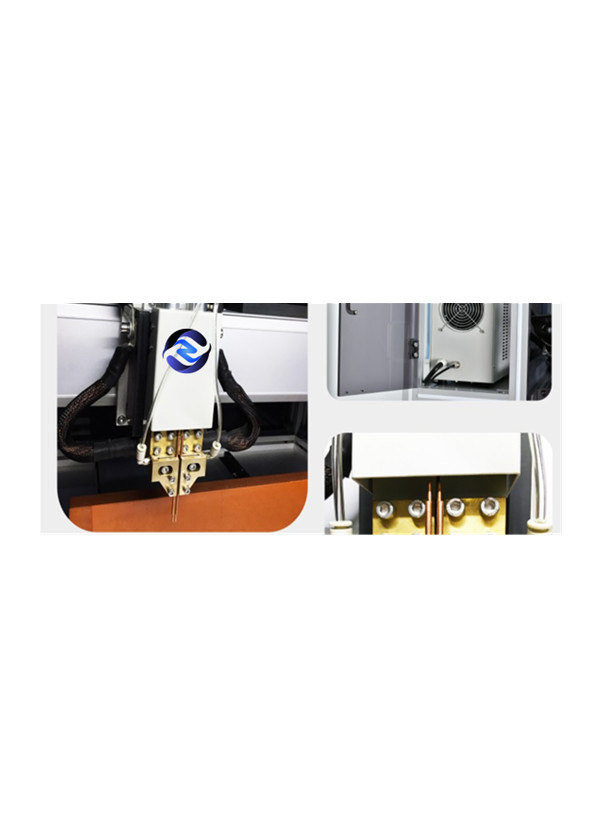

Spot welding head | Servo motors | Repeatability | ±0.02mm |
Welded nickel strip thickness | 0.1-0.3mm;0.2mm Slit or punch the bump above |
