Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | LDM18 |
Minimum Order Quantity: | 1set |
Price: | $12000/set |
Packaging Details: | Wooden packing |
Delivery Time: | 15 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets / month |

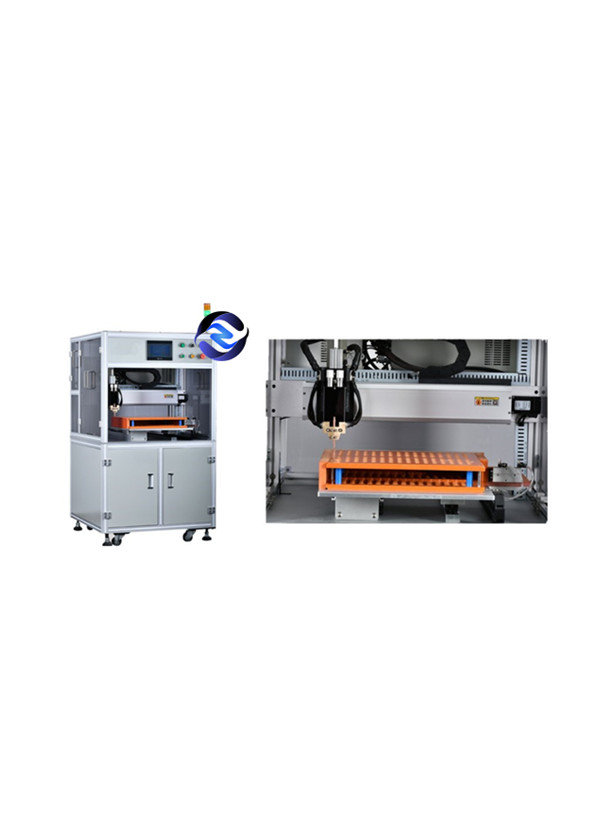

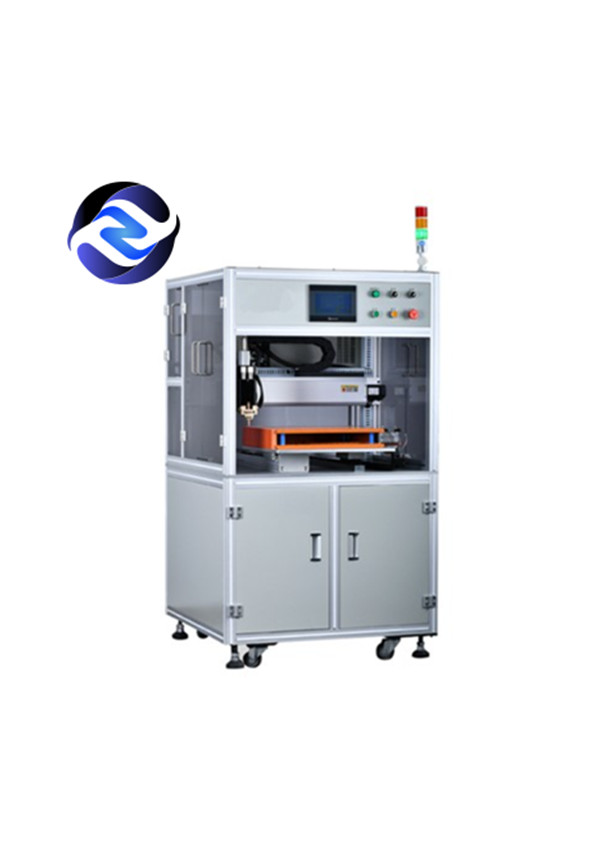

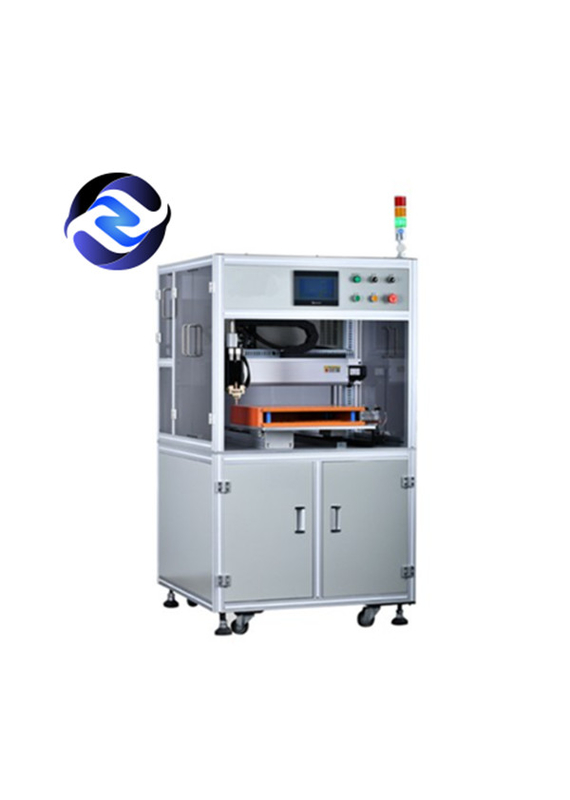

Name: | Battery Combined Welder、18650 Combined Welder | Power Input: | AC380V±10%/50Hz |
---|---|---|---|
X-axis Travel: | 500mm (customizable) | Y-axis Travel: | 400mm (customizable) |
Max Spot Welding Rate: | 0.5S/point | Max Speed Of Motor Drive: | 1500mm/S |
Max Loaded Cell: | (18650) About 500pcs | Dimension: | 900L*1000W*1600H |
Positioning Accuracy: | ±0.02mm | ||
High Light: | 500mm axis 18650 Lithium Battery Machine,500mm 18650 Lithium Battery Machine,50Hz 18650 spot welder |
Y-axis stroke | 400mm (customizable) | Operating system | Embedded system + HMI |
X-axis travel | 500mm (customizable) | Transmission mode | Screw rod+precision linear guide rail |
Max spot welding rate | 0.5S/point; 1500-1800pcs/h | Driving mode | Hybrid servo motor |
Max speed of motor drive | 1500mm/S | Welding thickness of Nickel Strip | 0.1mm-0.3mm, more than 0.2mm shall be forked and bumped |
Max loaded cell (18650) | About 500pcs (20 * 25) | Dimension | 900L*1000W*1600H |
No. of file groups saved | 99 groups | Positioning accuracy | ±0.02mm |
Weight | 300KG | Horizontal bearing weight | 15kg (according to customer requirements) |
