Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | LDJ02 |
Minimum Order Quantity: | 1set |
Price: | Details |
Packaging Details: | Wooden packing |
Delivery Time: | 15 work days |
Payment Terms: | T/T |
Supply Ability: | 20 sets / month |

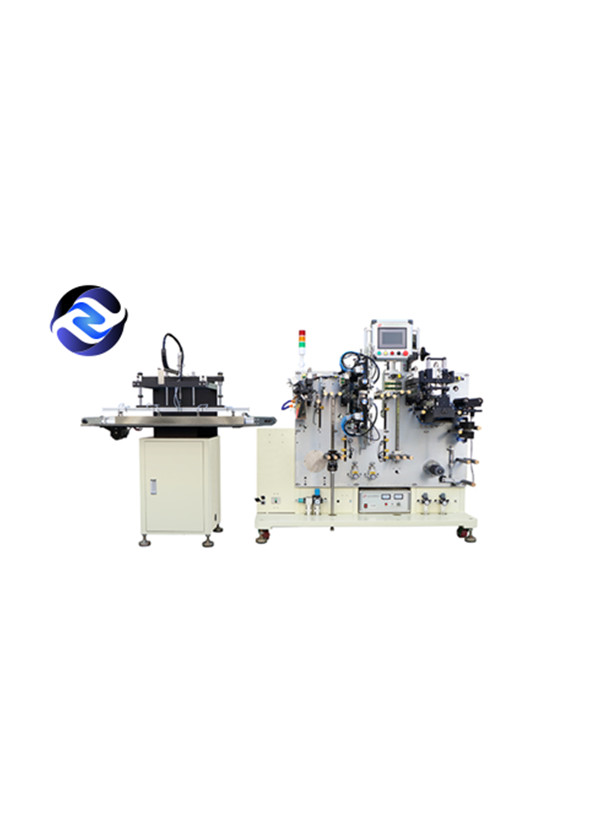

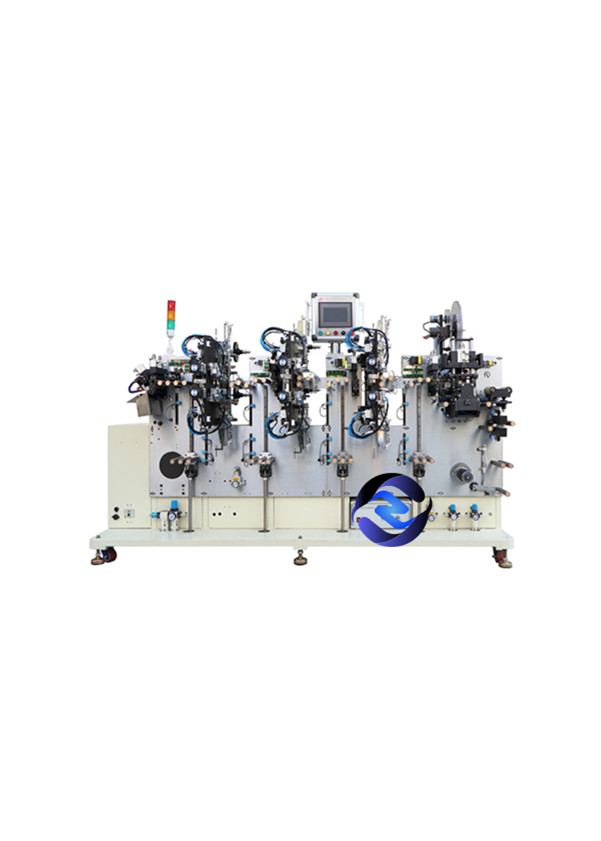

Name: | Polymer Film Making Machine, Winding Machine | Power Input: | AC220V±10%/50Hz |
---|---|---|---|
Length Range Of Pole Piece: | 300-2000mm | Width Range Of Pole Piece: | 30-130mm |
Thickness Range Of Pole Piece: | 50-280um | Polar Lug Length Range: | 30-70mm |
Polar Ear Width Range: | 3-6mm | Polar Lug Thickness Range: | 100-300um |
High Light: | Polymer film making machine,film making machine 2000mm pole,film winding machine 50Hz |
material | Feeding method | Material monolithic length(mm) | Material width(mm) | Base material thickness(um) | Maximum outer diameter(mm) | Inner diameter(mm) | ||
Size range | Size range | tolerance | Size range | tolerance | ||||
Polar plates | Rolls | 300-2000 | 30-130 | 0.2 | 50-280 | 5 | ∮400 | ∮76.2 |
Polar ears | Rolls | 30-70 | 3-6 | 0.2 | 100-300 | 5 | ∮400 | ∮76.2 |
Protective tape | Rolls | 30-130 | 6-20 | 0.2 | 20-80 | 5 | ∮200 | ∮76.2 |
remark:1,Pole sheet coating clearance error:±1mm
2,The polar blanks are aligned with the error between the front and back:±1mm
3,Serpentine bending error for single-piece pole pieces:0.6mm/1000mm
