Place of Origin: | China |
---|---|
Brand Name: | zhiyao |
Model Number: | DBU20 |
Minimum Order Quantity: | 1set |
Price: | Details |
Packaging Details: | Wooden packing |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T |
Supply Ability: | 200 sets / month |
Name: | UV Marking Machine | Rated Voltage: | AC220V±10% |
---|---|---|---|
Pulse Frequency: | 20-200KHZ | The Power Of The Whole Machine: | ≤1200W |
Repeatability: | ±0.01mm | Pulse Width: | 20NS@30KHZ |
Beam Quality: | M<1.2 | Spot Ovality: | >90% |
Marking Speed: | <8000mm/s | Cooling Method: | Water-cooling |
Working Area: | 10*10/70*70/150*150/200*200(Matching) | Supported Formats: | PLT/DXF /AI/CDR/JPG/PNG/DSP/BMP |
High Light: | 20KHZ uv laser printing machine,200KHZ uv laser printing machine,uv marking machine 1200W |

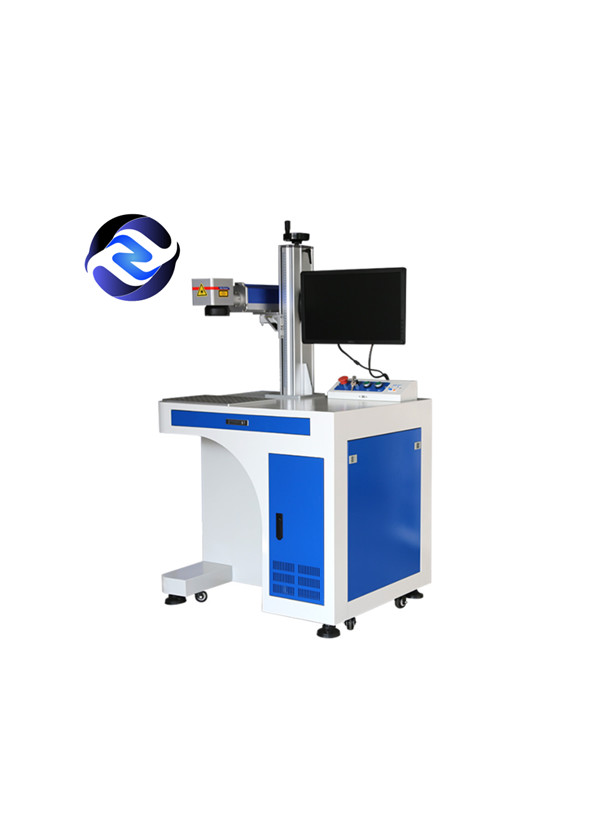

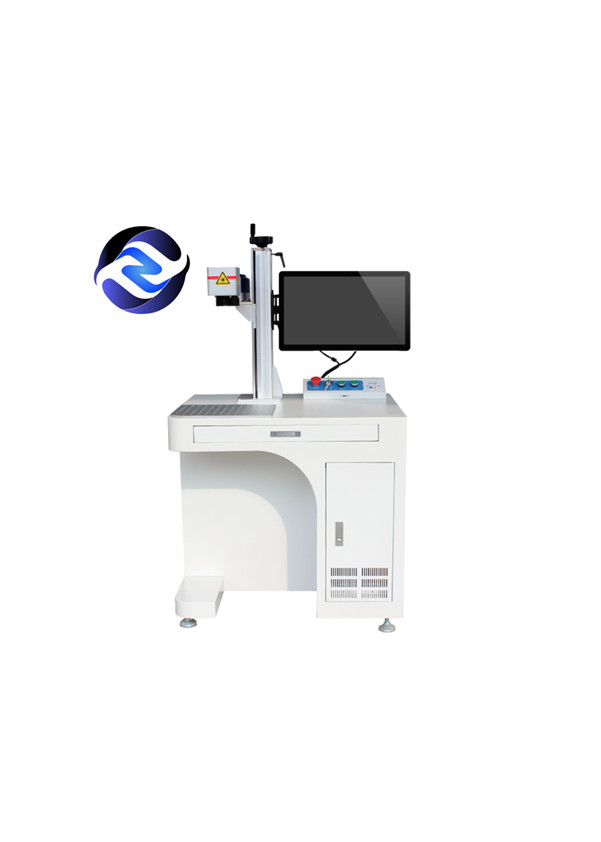

UV Marking machine
Model | DBU20 |
Rated voltage | 220V-50HZ |
Pulse frequency | 20-200KHZ |
The power of the whole machine | ≤1200W |
Repeatability | ±0.01mm |
Pulse width | 20NS@30KHZ |
Beam quality | M<1.2 |
Spot ovality | >90% |
Marking speed | <8000mm/s |
Cooling method | water-cooling |
Working area | 10*10/70*70/150*150/200*200(Matching) |
Supported formats | PLT/DXF /AI/CDR/JPG/PNG/DSP/BMP |
